Electrical Properties | STC*

Testing Condition	625	630	635	640	645	650
Peak Power (Pmax) (W)	625	630	635	640	645	650
MPP Voltage (Vmp) (V)	41.45	41.63	41.24	41.40	41.56	41.72
MPP Current (Imp) (A)	15.08	15.13	15.40	15.46	15.52	15.58
Open Circuit Voltage (Voc) (V)	49.19	49.30	49.50	49.70	49.90	50.10
Short Circuit Current (Isc) (A)	16.05	16.15	16.31	16.37	16.43	16.49
Module Efficiency (%)	23.1	23.3	23.5	23.7	23.9	24.1

*STC: Irradiance 1000 W/m², Cell Temperature 25°C, AM1.5 The data above is for reference only and the actual data is in accordance with the pratical testing Power Measurement Tolerance ±3%

Electrical Properties | NMOT*

Testing Condition	468	472	476	479	483	487
Peak Power (Pmax) (W)	468	472	476	479	483	487
MPP Voltage (Vmp) (V)	39.69	39.86	39.49	39.64	39.79	39.95
MPP Current (Imp) (A)	11.80	11.84	12.04	12.09	12.14	12.19
Open Circuit Voltage (Voc) (V)	47.10	47.20	47.40	47.59	47.78	47.97
Short Circuit Current (Isc) (A)	12.96	13.04	13.17	13.22	13.27	13.32

*NMOT: Irradiance 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s Electrical Properties Under Different Rear

Electrical Properties Under Different Rear Gain | JW-HD132N-R2-645S

Power Gain (%)	Peak Power (W)	Vmp (V)	Imp (A)	Voc (V)	Isc (A)
10	709.5	41.56	17.07	49.90	18.07
15	741.8	41.56	17.85	49.90	18.89
20	774.0	41.66	18.58	50.00	19.68
25	806.3	41.66	19.35	50.00	20.50
30	838.5	41.66	20.13	50.00	21.32

Operating Properties

Operating Temperature	-40°C ~ +85°C
Maximum System Voltage	1500V (IEC)
Maximum Series Fuse Rating	35A
Bifaciality	80%
Maximum Static Load	Front 8100Pa, Rear 3000Pa

*Bifaciality=Pmaxrear（STC）/Pmaxfront（STC） ，Bifaciality tolerance:±5% *For detailed information, please refer to the Installation Manual

Temperature Coefficient

Pmax	-0.280%/°C
Voc	-0.250%/°C
Isc	+0.045%/°C
NOCT	45±2°C

Specification

Number of Cells	132 pcs

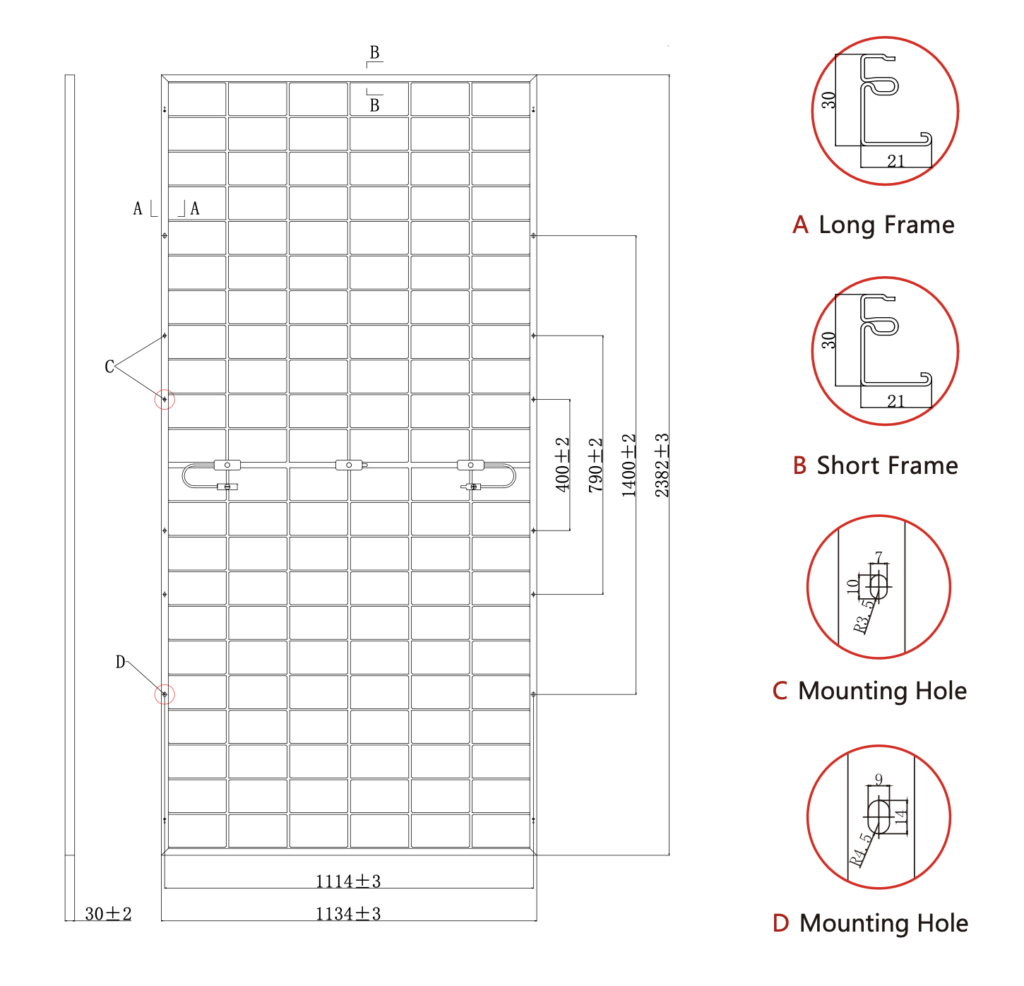

Module Dimension	2382 × 1134 × 30 mm
Weight	34.8 kg
Front / Rear Glass	2.0mm / 2.0mm heat-strengthened glass
Frame	Aluminum-Magnesium-Zinc Coated Steel
Junction Box	IP68 (3 diodes)
Length of Cable	4.0mm², +300mm / -180mm (Cable length customizable)
Packaging	36 pcs/pallet, 684 pcs/40HQ

*The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement,Jolywood(Taizhou) Solar Technology Co., Ltd. reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase and sale of the products described herein.
